Trading the Outstretched Indicator in Python — Profiting From Momentum.

abouttrading.substack.com

Trading the Outstretched Indicator in Python — Profiting From Momentum.

Creating and Coding the Outstretched Indicator in Python.

Sofien Kaabar, CFA
Mar 14, 2022
Share this post

Trading the Outstretched Indicator in Python — Profiting From Momentum.

abouttrading.substack.com

Momentum can be faded in many ways when we have enough elements to suggest that exhaustion may happen. This can be done through divergence analysis, oversold/overbought levels, and timing indicators such as the TD differentials pattern. In this article, we will create an indicator that can be used both for discretionary and systematic trading.

Share


Creating the Outstretched Indicator Step-By-Step

The idea is to mark rising and falling momentum and then calculate an exponential moving average based on the sum of the different momentum moves. The steps can be summed up as follows:

  • Select a momentum lookback and a moving average lookback. By default we can use 3.

  • Create two columns called the positive stretch and the negative stretch, where the first one has 1’s if the current closing price is greater than the closing price 3 periods ago and the other one has 1’s if the current closing price is lower than the closing price 3 periods ago.

  • Sum the latest three positive and negative stretches and subtract the results from each other. This is called the raw outstretch.

  • Finally, to get the outstretched indicator, we take the 5-period exponential moving average of the raw outstretch.

GBPUSD in the first panel with the outstretch indicator in the second panel.
def outstretched_indicator(Data, lookback, lookback_ma, close, where):

    # Adding a few columns
    Data = adder(Data, 6)

    # Calculating the Stretch
    for i in range(len(Data)):

        # Positive Stretch
        if Data[i, close] > Data[i - lookback, close]:
            Data[i, where] = 1

        # Negative Stretch
        else:
            Data[i, where + 1] = 1
    # Positive Stretch Summation
    for i in range(len(Data)):

        Data[i, where + 2] = Data[i - lookback + 1:i + 1, where].sum()
    # Negative Stretch Summation
    for i in range(len(Data)):

        Data[i, where + 3] = Data[i - lookback + 1:i + 1, where + 1].sum()

    # Calculating the Raw Outstretch
    Data[:, where + 4] = Data[:, where + 2] - Data[:, where + 3]

    # Calculating the Outstretched Indicator
    Data = ema(Data, 2, lookback_ma, where + 4, where + 5)

    # Deleting columns
    Data = deleter(Data, where, 5)

    return Data
EURUSD in the first panel with the outstretch indicator in the second panel.

Note that for the above function to work, you do not need to add columns before as it is already embedded in the function.

Share


Using the Outstretched Indicator in Discretionary Trading

Discretionary is manual low-frequency trading. It is what we do when we take the time to look at the market and consult our research for the best opportunities. Discretionary trading is superior to systematic trading when it comes to subjective interpretation and the hunch or what is referred to as the trader’s guts.

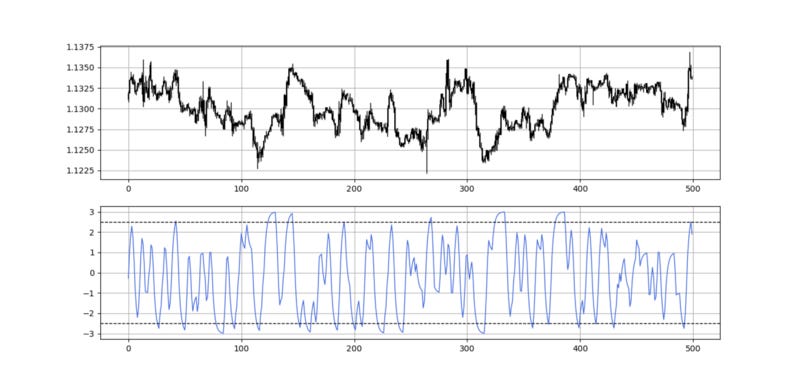

Signal chart.

The above chart shows the signals generated when the barriers on the indicator are set close to the absolute extreme (which is 3) at 2.5. This means that whenever the indicator reaches 2.5 or -2.5, we can have a contrarian bias.

Share


Conclusion

Remember to always do your back-tests. You should always believe that other people are wrong. My indicators and style of trading may work for me but maybe not for you.

I am a firm believer of not spoon-feeding. I have learnt by doing and not by copying. You should get the idea, the function, the intuition, the conditions of the strategy, and then elaborate (an even better) one yourself so that you back-test and improve it before deciding to take it live or to eliminate it. My choice of not providing specific Back-testing results should lead the reader to explore more herself the strategy and work on it more.

To sum up, are the strategies I provide realistic? Yes, but only by optimizing the environment (robust algorithm, low costs, honest broker, proper risk management, and order management). Are the strategies provided only for the sole use of trading? No, it is to stimulate brainstorming and getting more trading ideas as we are all sick of hearing about an oversold RSI as a reason to go short or a resistance being surpassed as a reason to go long. I am trying to introduce a new field called Objective Technical Analysis where we use hard data to judge our techniques rather than rely on outdated classical methods.
