Coding the Breakaway Candlestick Pattern Scanner in TradingView
Candlestick patterns are a great addition to market analysis. Some may even consider them vital in research and trading. This article presents the Breakaway pattern and shows how to code a scanner in TradingView that detects it.
The Breakaway Pattern
Candlestick charts are among the most famous ways to analyze the time series visually. They contain more information than a simple line chart and have more visual interpretability than bar charts.
The Breakaway pattern is a five-candle configuration that represents a change of dynamic of a severe one-sided move.
The bullish Breakaway is composed of four bearish candlesticks where ideally the second one gaps below the first one, then a fifth big bullish candlestick closes above the open of the second bearish candlestick. The following Figure shows a theoretical illustration of the bullish Breakaway.
The bearish Breakaway is composed of four bullish candlesticks where ideally the second one gaps above the first one, then a fifth big bearish candlestick closes below the open of the second bullish candlestick. The following Figure shows a theoretical illustration of the bearish Breakaway.
If you want to see more of my work, you can visit my website for the books catalogue by simply following this link:
Coding the Scanner in TradingView
The conditions of the pattern are relatively easy to code especially in a straightforward and simple coding language such as Pine Script, TradingView’s native language.
The aim of the scanner is to detect the Breakaway patterns using the following indications:
A green arrow for bullish Breakaway signals.
A red arrow for bearish Breakaway signals.
// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © Sofien-Kaabar
//@version=5
indicator("Candlestick Pattern - Breakaway", overlay = true)
bullish_breakaway = close > open[3] and close > open and close[1] < open[1] and close[2] < open[2] and close[3] < open[3] and close[4] < open[4] and open[3] < close[4]
bearish_breakaway = close < open[3] and close < open and close[1] > open[1] and close[2] > open[2] and close[3] > open[3] and close[4] > open[4] and open[3] > close[4]
plotshape(bullish_breakaway, style = shape.triangleup, color = color.green, location = location.belowbar, size = size.small)

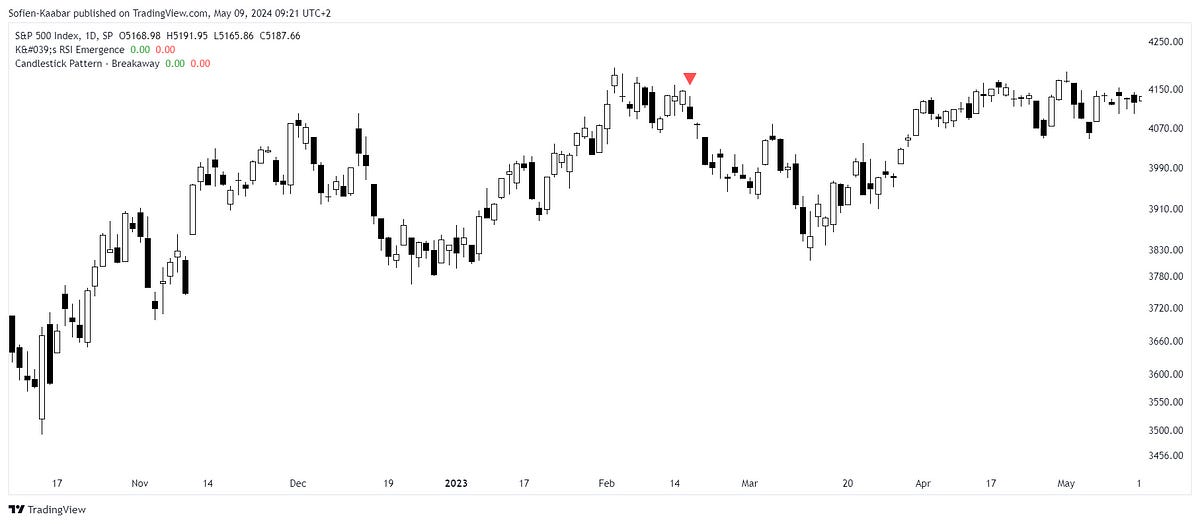

plotshape(bearish_breakaway, style = shape.triangledown, color = color.red, location = location.abovebar, size = size.small)The following Figure shows a signal chart after the code has been applied and executed. Bear in mind that this pattern is quite rare.
The following Figure shows another signal chart.
