New Breed of Technical Indicators — Green
Discussing a New Technical Indicator and Coding it in TradingView
This article discusses one of the indicators of a set called the Rainbow Indicators which are structured and unique combinations of price-derived techniques aimed to help the trader predict reversals or to confirm the on-going trend. The indicator discussed is called the Green indicator, a contrarian method based on the concept of slope-infused RSI’s.
Creating the Green Indicator
The slope of a time series is the rate of change between the current values and previous values. A rising market will generally have a positive slope until it approaches zero and starts turning negative which coincides with a falling market.
What if we apply this approach on the RSI with a few extra conditions? The RSI is a well-known contrarian indicator that oscillates between 0 and 100 (with the area of 25 considered oversold and the area of 75 considered overbought). Traders typically monitor the RSI when it reaches the oversold and overbought areas for contrarian opportunities.
The Green indicator calculates a 13-period RSI and then calculates a 5-period slope on it (this means that every RSI value will be subtracted from the one five periods ago, and the result is divided by five).
The Green indicator is therefore used as follows:
A bullish signal is generated whenever the current RSI-slope turns positive (surpasses zero) while the RSI is below 25.
A bearish signal is generated whenever the current RSI-slope turns negative (breaks zero) while the RSI is above 75.
For simplicity, the indicators of the Rainbow collection are charted in an overlay arrow-based technique where only confirmed signals are shown (as opposed to showing the indicator on its own).
You can also check out my other newsletter The Weekly Market Sentiment Report that sends tactical directional views every weekend to highlight the important trading opportunities using a mix between sentiment analysis (COT reports, Put-Call ratio, Gamma exposure index, etc.) and technical analysis.
Coding the Green Indicator

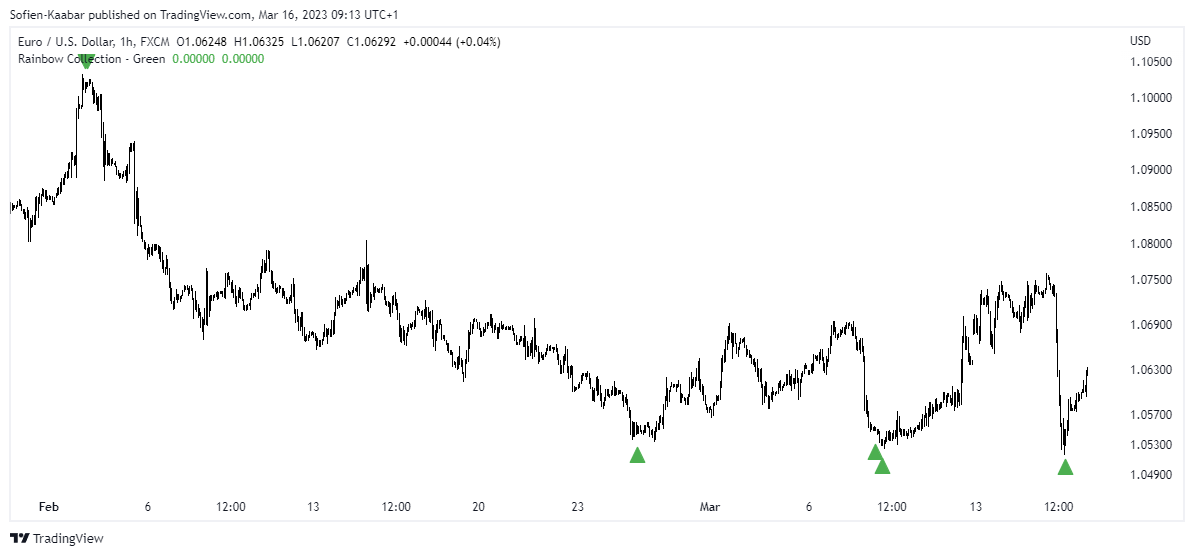

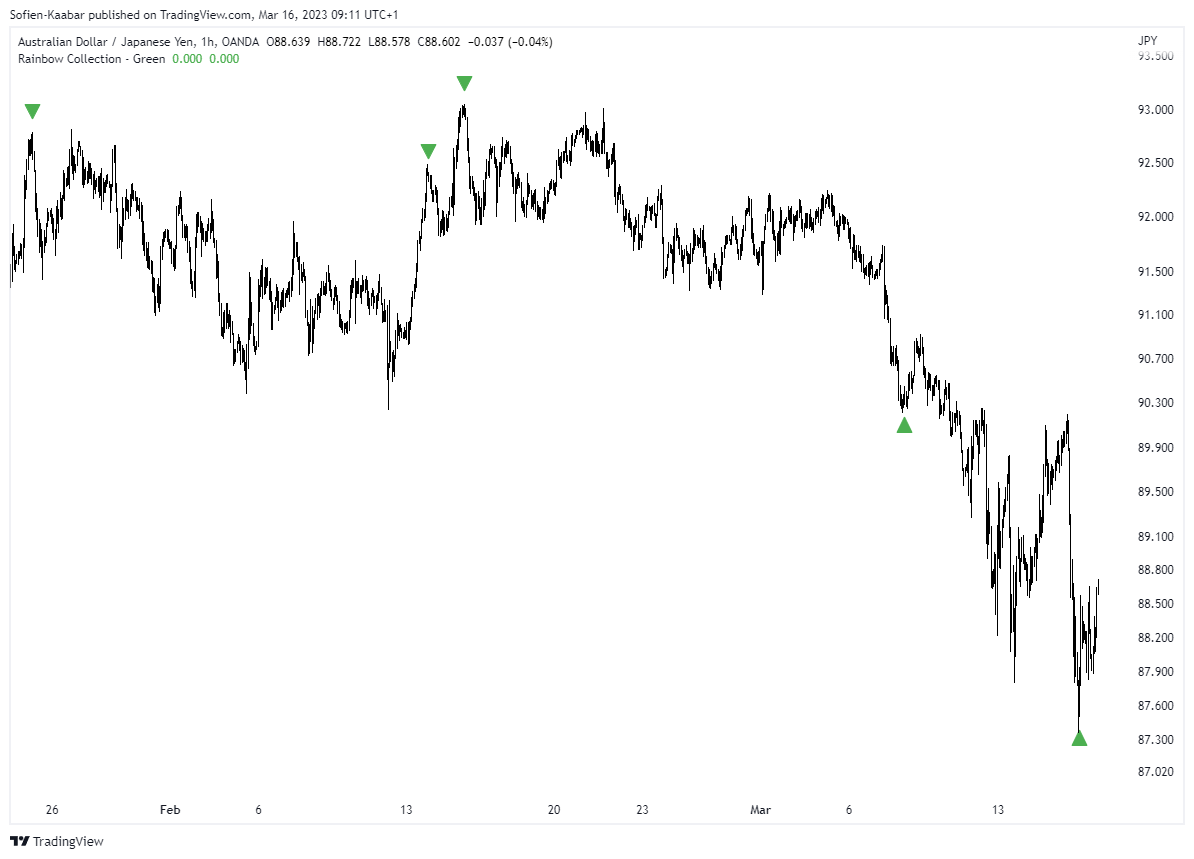

Pine Script is TradingView’s main coding language which is very user-friendly. We will code this indicator and check out its signals. The next Figure shows the with the signals generated from the indicator.
// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © Sofien-Kaabar
//@version=5
indicator("Rainbow Collection - Green", overlay = true)
rsi = ta.rsi(close, 13)
slope = (rsi - rsi[5]) / 5
buy = slope > 0 and slope[1] < 0 and rsi < 25
sell = slope < 0 and slope[1] > 0 and rsi > 75
plotshape(buy and sell[1] == 0, style = shape.triangleup, color = color.green, location = location.belowbar, size = size.small)
plotshape(sell and buy[1] == 0, style = shape.triangledown, color = color.green, location = location.abovebar, size = size.small)
