Financial Signal Processing in Python IX - Wavelet Data Denoising

Part IX of Decomposing Time Series and Understanding their Components

This article will be the part IX of a series of articles that present the signal processing field in an easy and straightforward manner. Financial Signal Processing (FSP) is the application of signal processing techniques to financial time series—like stock prices, returns, volatility, or economic indicators.

It treats price movements like signals—similar to audio—and applies filters, transformations, and models to extract hidden patterns, reduce noise, or make forecasts.

There are many concepts in FSP that are worth discussing, and throughout these special articles, I will try to present each one with functioning code that shows how to use and interpret it:

• Decomposition

  • Empirical Mode Decomposition (EMD)

  • Principal Component Analysis (PCA)

• Filters

  • Moving Averages

  • Kalman Filter

  • Wiener Filter

• Spectral Analysis

  • Fourier Transform

  • Wavelet Transform

• Denoising

  • Wavelet Denoising 👈🏻

  • Savitzky–Golay Filter

• Anomaly Detection

  • Recurrence Plots

  • Entropy

  • Signal Spikes

---

Introduction to Wavelet Denoising

Many time series can be thought of as a clean signal St observed in noise:

with εt often modeled as i.i.d. Gaussian noise. A good denoiser should suppress εt without erasing salient structure in St (levels, kinks, bursts, periodicities). Wavelets are effective because they give a sparse, multi-scale description of piecewise-smooth signals. Apply an orthonormal discrete wavelet transform (DWT) W to x:

where aJ are coarse (approximation) coefficients and dj​ are detail coefficients at scales j=1 (finest) to J (coarsest). Because W is orthonormal, energy is preserved (Parseval):

White noise in time remains white noise in wavelet space, sprinkling small coefficients across all scales, while meaningful structure concentrates in relatively few, large coefficients. This separation motivates shrinkage: keep big coefficients (likely signal), suppress small ones (likely noise).

The standard recipe is soft thresholding of detail coefficients, leaving the approximation untouched to preserve large-scale trends:

Two practical questions remain:

How big should the thresholds be?

A widely used choice is the (level-wise) universal threshold:

where σ is a robust noise estimate at scale j, typically from the median absolute deviation (MAD) of the finest-scale (or per-scale) detail coefficients:

This controls the probability of retaining pure-noise coefficients. Alternatives include SURE, BayesShrink, and cross-validated thresholds, but the universal rule is simple, fast, and reliable when noise is close to white.

What about boundary effects and shift sensitivity?

Finite signals require extension at the edges (e.g., symmetric padding). Also, the critically sampled DWT is not translation-invariant: small circular shifts of x can change which coefficients cross λ. A pragmatic fix is cycle-spinning: denoise multiple circularly shifted versions and average them:

where D(⋅) denotes wavelet-threshold denoising. This approximates the translation-invariant (stationary) wavelet transform at low cost and visibly reduces “ringing” and Gibbs-like artifacts around jumps.

Wavelet shrinkage excels for signals that are globally smooth with localized irregularities—common in econometrics (trend + shocks), biomedicine (spikes), and engineering (transients). For a random walk St = St−1 + ηt itself, the path is intrinsically rough; however, if the observations are noisy, i.e.,

Wavelet denoising still helps by attenuating the measurement noise εt while keeping the stochastic trend.

Do you want to master Deep Learning techniques tailored for time series, trading, and market analysis?

My book breaks it all down from basic Machine Learning to complex multi-period LSTM forecasting while going through concepts such as Fractional Differentiation and Forecasting Thresholds. Get your copy here 📖!

---

Application of the Machine Learning Model

The code creates a noisy random walk (a path that moves up and down unpredictably with added measurement noise), then tries to clean it up using wavelet denoising.

Wavelets break the signal into big-picture trends and fine details; the fine details mostly contain noise, so we shrink or remove them and then rebuild the signal. The result is a smoother version of the noisy path that keeps the main movements of the random walk while reducing the extra fuzz.

import numpy as np
import pywt
import matplotlib.pyplot as plt

def wavelet_denoise(x, wavelet="db8", level=None, mode="symmetric",
                    spins=0, per_level=True, keep_approx=True):
    """
    Wavelet soft-threshold denoising with optional cycle-spinning.

    Parameters
    ----------
    x : array-like
        1D signal.
    wavelet : str
        PyWavelets wavelet name (e.g., 'db8', 'sym8', 'coif5').
    level : int or None
        Decomposition level. If None, uses pywt.dwt_max_level(len(x), filter_len).
    mode : str
        Signal extension mode: 'symmetric', 'periodization', etc.
    spins : int
        Number of cycle-spins (0 = none). If >0, uses shifts s=0..spins-1.
    per_level : bool
        If True, estimate sigma and threshold at each level separately.
        If False, estimate once from the finest level and use same lambda for all details.
    keep_approx : bool
        If True, do not threshold the approximation coefficients.

    Returns
    -------
    x_hat : np.ndarray
        Denoised signal, same length as x.
    thresholds : list
        Thresholds used at each detail level (from J down to 1).
    """
    x = np.asarray(x)

    def _single_denoise(sig):
        # Decompose
        coeffs = pywt.wavedec(sig, wavelet=wavelet, mode=mode, level=level)
        aJ, d_details = coeffs[0], coeffs[1:]
        n = sig.size

        # Level-dependent sigma and thresholds
        thresholds = []
        new_coeffs = [aJ.copy()]

        # detail order in coeffs is [dJ, dJ-1, ..., d1]
        for d in d_details:
            if per_level:
                sigma = np.median(np.abs(d)) / 0.6745 if d.size > 0 else 0.0
            else:
                # if using a single sigma from the finest scale, compute once
                pass
            thresholds.append(sigma * np.sqrt(2.0 * np.log(n)))

        if not per_level:
            # compute sigma from the finest scale d1 (last in list)
            finest = d_details[-1]
            sigma_global = np.median(np.abs(finest)) / 0.6745 if finest.size > 0 else 0.0
            lam = sigma_global * np.sqrt(2.0 * np.log(n))
            thresholds = [lam for _ in d_details]

        # Soft-threshold details
        denoised_details = []
        for d, lam in zip(d_details, thresholds):
            denoised_details.append(np.sign(d) * np.maximum(np.abs(d) - lam, 0.0))

        # Optionally threshold approximation (usually we keep it)
        if keep_approx:
            aJ_new = aJ
        else:
            sigmaA = np.median(np.abs(aJ)) / 0.6745
            lamA = sigmaA * np.sqrt(2.0 * np.log(n))
            aJ_new = np.sign(aJ) * np.maximum(np.abs(aJ) - lamA, 0.0)

        coeffs_new = [aJ_new] + denoised_details
        # Reconstruct
        x_hat = pywt.waverec(coeffs_new, wavelet=wavelet, mode=mode)
        # Match original length (waverec can overshoot by < filter_len)
        return x_hat[:n], thresholds

    if level is None:
        # choose a reasonable maximum level for the signal and wavelet filter length
        maxlev = pywt.dwt_max_level(data_len=x.size, filter_len=pywt.Wavelet(wavelet).dec_len)
        level = max(1, min(10, maxlev))  # cap to avoid silly levels on long signals

    if spins and spins > 0:
        acc = np.zeros_like(x, dtype=float)
        # store one set of thresholds for reporting (first shift)
        thresholds_used = None
        for s in range(spins):
            xs = np.roll(x, s)
            x_hat_s, th_s = _single_denoise(xs)
            if thresholds_used is None:
                thresholds_used = th_s
            acc += np.roll(x_hat_s, -s)
        return acc / float(spins), thresholds_used
    else:
        return _single_denoise(x)

# ---- Demo: Random walk + observation noise + denoising ----

def simulate_random_walk(n=1024, drift=0.0, step_sigma=1.0, obs_sigma=0.5, seed=13):
    rng = np.random.default_rng(seed)
    steps = rng.normal(loc=drift, scale=step_sigma, size=n)
    S = np.cumsum(steps)  # latent random walk
    y = S + rng.normal(0.0, obs_sigma, size=n)  # noisy observations
    return S, y

if __name__ == "__main__":
    n = 2048
    S, y = simulate_random_walk(n=n, drift=0.01, step_sigma=1.0, obs_sigma=0.8, seed=7)

    # Denoise with and without cycle-spinning
    y_hat, thr = wavelet_denoise(
        y,
        wavelet="db8",
        level=None,           # auto
        mode="symmetric",
        spins=0,              # no cycle-spinning
        per_level=True,
        keep_approx=True
    )

    y_hat_cs, thr_cs = wavelet_denoise(
        y,
        wavelet="db8",
        level=None,
        mode="symmetric",
        spins=8,              # 8 shifts for translation robustness
        per_level=True,
        keep_approx=True
    )

    # Plot
    plt.figure(figsize=(11, 6))
    plt.plot(S, color="black", lw=1.5, label="Latent random walk $S_t$")
    plt.plot(y, color="tab:gray", alpha=0.45, lw=1, label="Noisy observations $y_t$")
    plt.plot(y_hat, color="tab:blue", lw=1.5, label="Wavelet denoised (no spins)")
    plt.plot(y_hat_cs, color="tab:green", lw=2.0, alpha=0.9, label="Wavelet denoised (cycle-spinning, 8)")
    plt.title("Wavelet Denoising of Noisy Random Walk (db8, level-wise universal thresholds)")
    plt.xlabel("t")
    plt.ylabel("value")
    plt.legend()
    plt.tight_layout()
    plt.show()

    # Print a quick report of thresholds (coarsest -> finest)
    print("Detail thresholds (coarsest to finest):")
    print([round(v, 3) for v in thr])

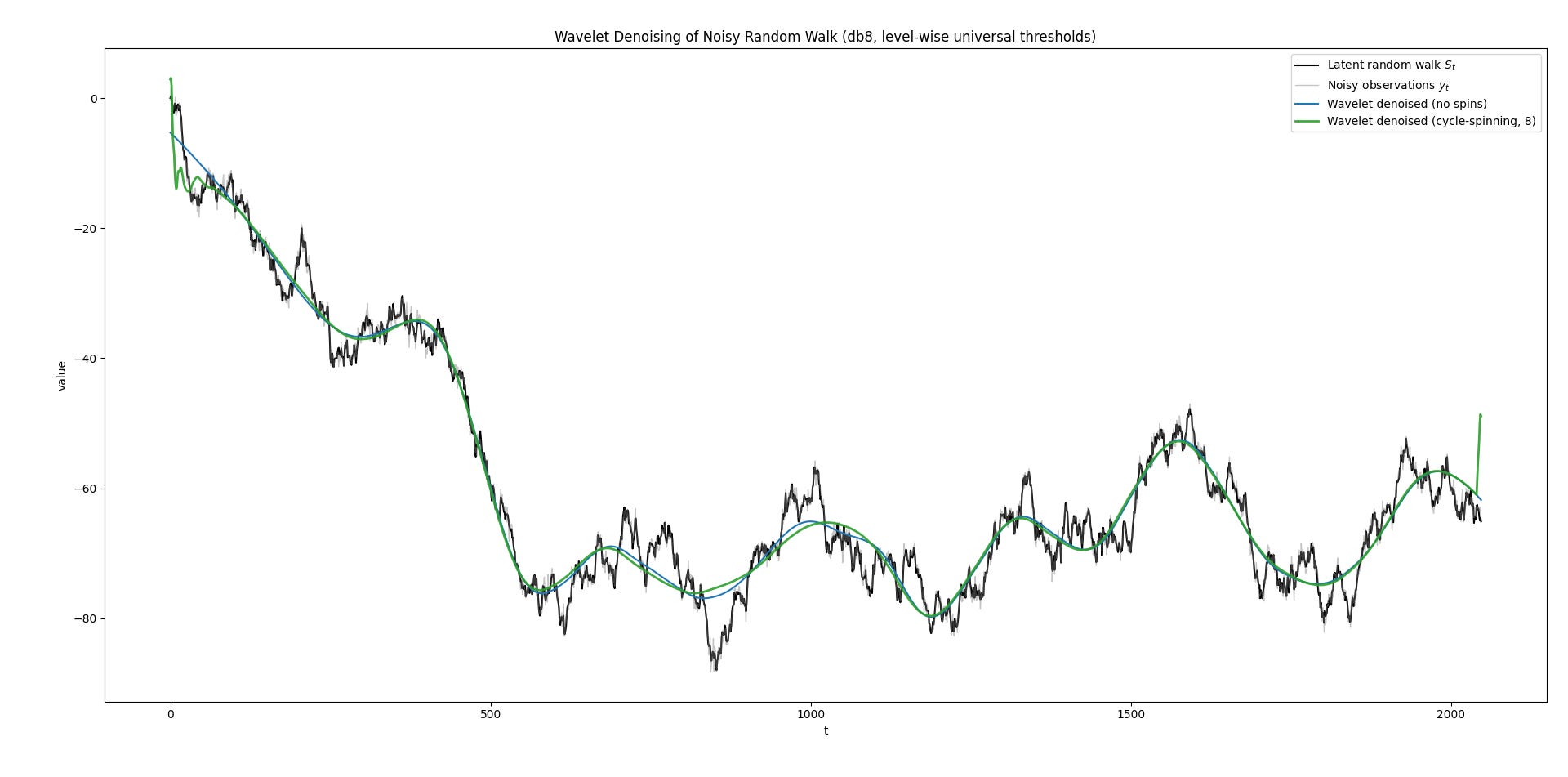

The following chart is the output of the code.
